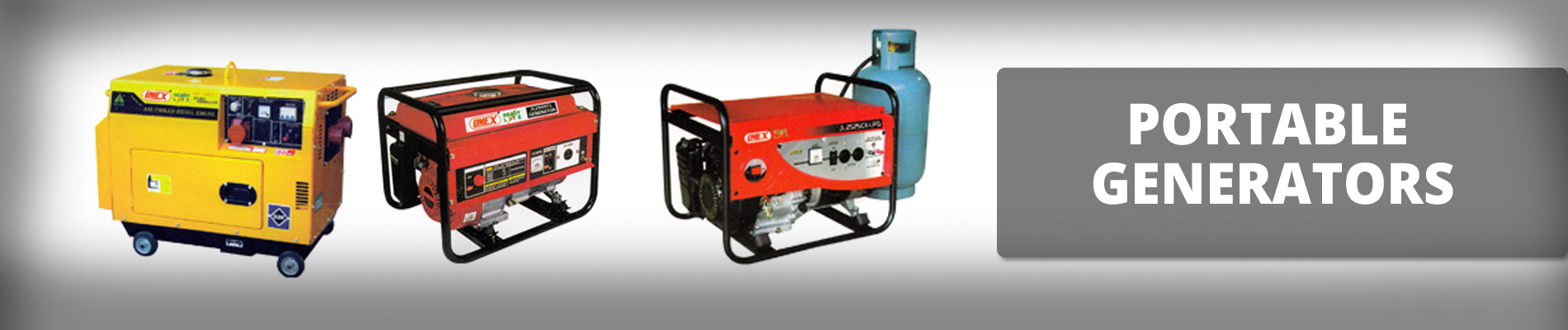

Portable Generator Set
JL 2525 CX-LPG | EP 2500 CX | SGF 3-CX |
5GF-CX | JL-900 | JL1000 |
AIR COOLED DIESEL GENERATING SETS | |||||||||
TYPE | JL2500CX-LPG | 2GF-CX | 3GF-CX |
5GF-CX | 3GF3-LDE | 5GF3-LDE | EP 2500CX | JL2900 | JL 1000 |
MODEL | JL 168F-1-LPG | JL 170 FG | JF 178 FG | JF 178 FG | JF 178 FG | JF 186 FG | JF 168 FG | JL 1E45-1 | JL 1E45F-1 |
RATED FREQUENCY(HZ) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
RATED OUTPUT (KW.) | 2.0 | 2.0 | 3.0 | 5.0 | 3.0 | 5.00 | 2.20 | 0.95 | 1.00 |
RATED VOLTAGE (V) | 230 | 240/120 V | 240/120 V | 240/120 V | 230 | 230 | 220 | 220 | 220 |
RATED CURRENT (A) | 8.3/6.7 | 12.2 | 18.2 | 12.2 | 18.3 | 9.1 | 2.95 | 3.4 | |
ENGINE (R/MIN.) | 3600 | 3000 | 3000 | 3000 | 3000 | 3000 | |||
ENGINE TYPE | SINGLE - CYLINDER. VERTICAL 4 STROKE A/C DIESEL ENGINE | OHV 250 Tilt 4 Stroke A/C | SINGLE CYLINDER 2 STROKE A/C | ||||||
BORE X STROKE(MM) | 68 X45 | 68 X45 | 78 X62 | 86 X 70 | 78 X 62 | 86 X 62 | 68 X 45 | 45 X 40 | 45 X 40 |
DISPLACEMENT | 196 | 196 | 296 | 406 | 296 | 406 | |||
COMPRESSION RATION | 8:5:1 | 7:4:1 | 7:4:1 | ||||||
TYPE OF FUEL | LPG | DIESEL | DIESEL | DIESEL | DIESEL | DIESEL | DIESEL | DIESEL | DIESEL |
POWER FACTOR(COS Ø) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
CONSUMPTION (g/kw.h) | 0.32 | 282 | 282.2 | 273.5 | 273.5 | 273.5 | |||
N. W (kg.) | 46.50 | 53 | 65 | 92 | 130 | 170 | 39 | 20 | 21 |
